Venturi-SSD
PXI Data Storage | PXIe Data Storage | PXI SSD | PXIe SSD

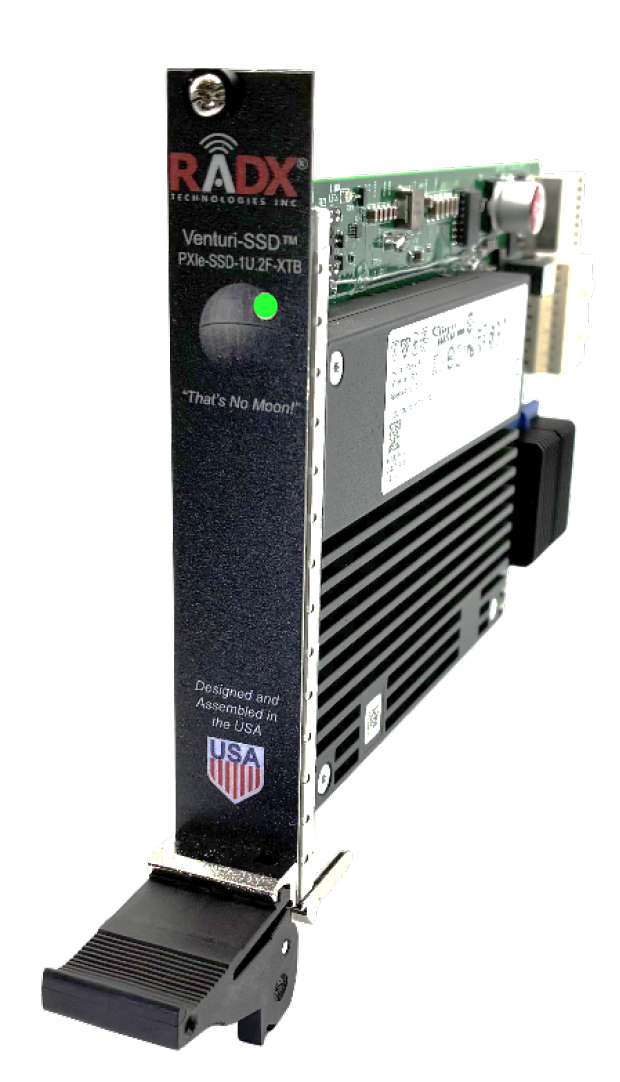

The Venturi Family of COTS Data Center PXIe-SSDs™ — a new line of cost-effective, high-performance PXIe data storage modules optimized for data-intensive Test & Measurement (T&M) applications, such as real-time signal processing, RF and spectrum analysis, data recording and playback, and AI training and inference.

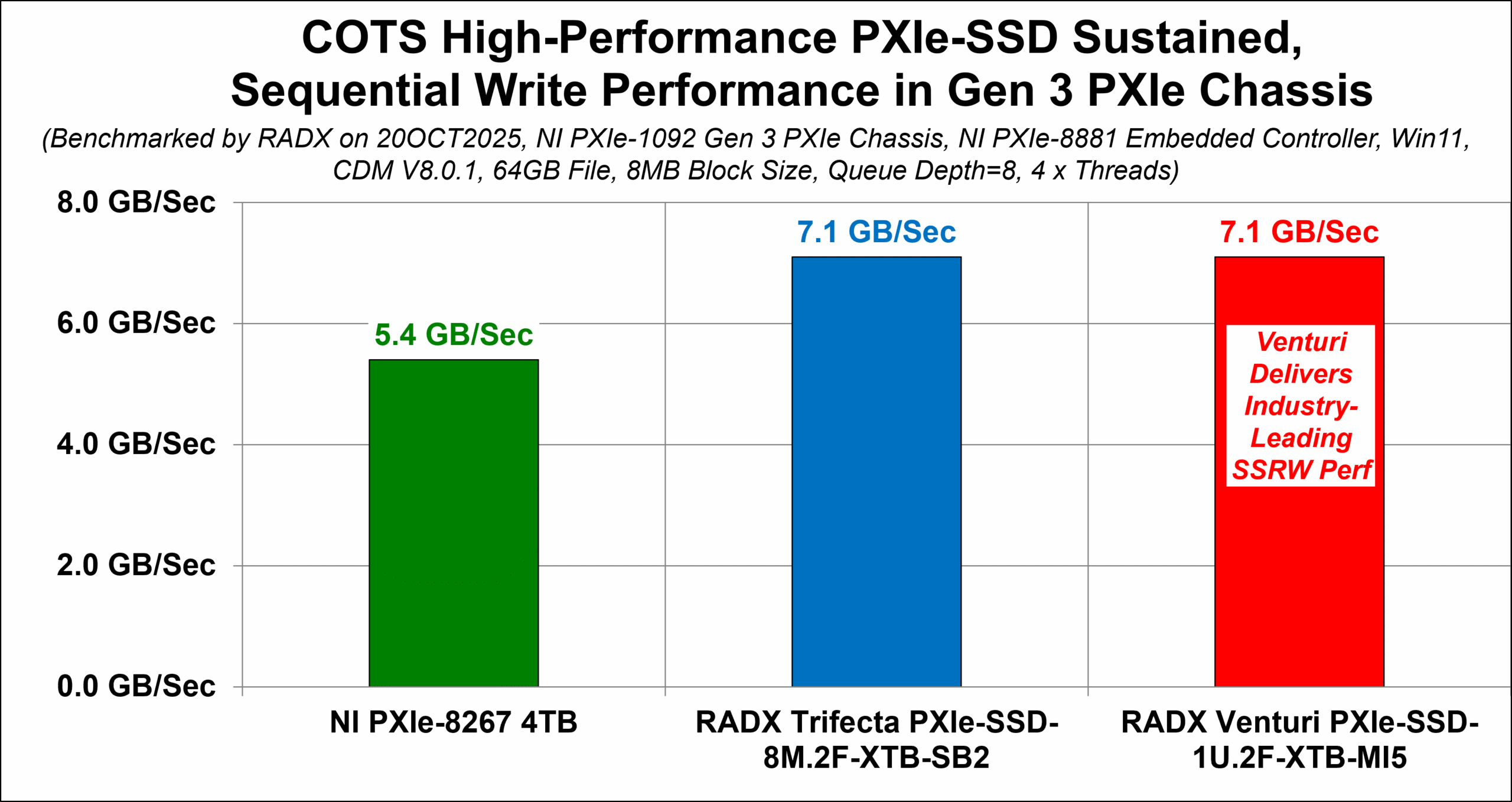

Venturi PXIe-SSDs incorporate unique, patent-pending RADX technology that enables 15mm, PCIe Gen 4 and Gen 5, Data Center U.2 and U.3 NVMe SSDs to deliver Sustained, Sequential Read and Write (SSRW) performance of up to ~7.2 GB/Sec Read and ~7.1 GB/Sec Write in PXIe Gen 3 chassis. ~7.2 GB/Sec Read and ~7.1 GB/Sec Write is effectively the upper limit for SSRW in Gen 3 PXIe systems and is equivalent to the performance achieved by RADX Trifecta PXIe-SSD RAID modules with 8 x M.2 2280 NVMe SSDs.

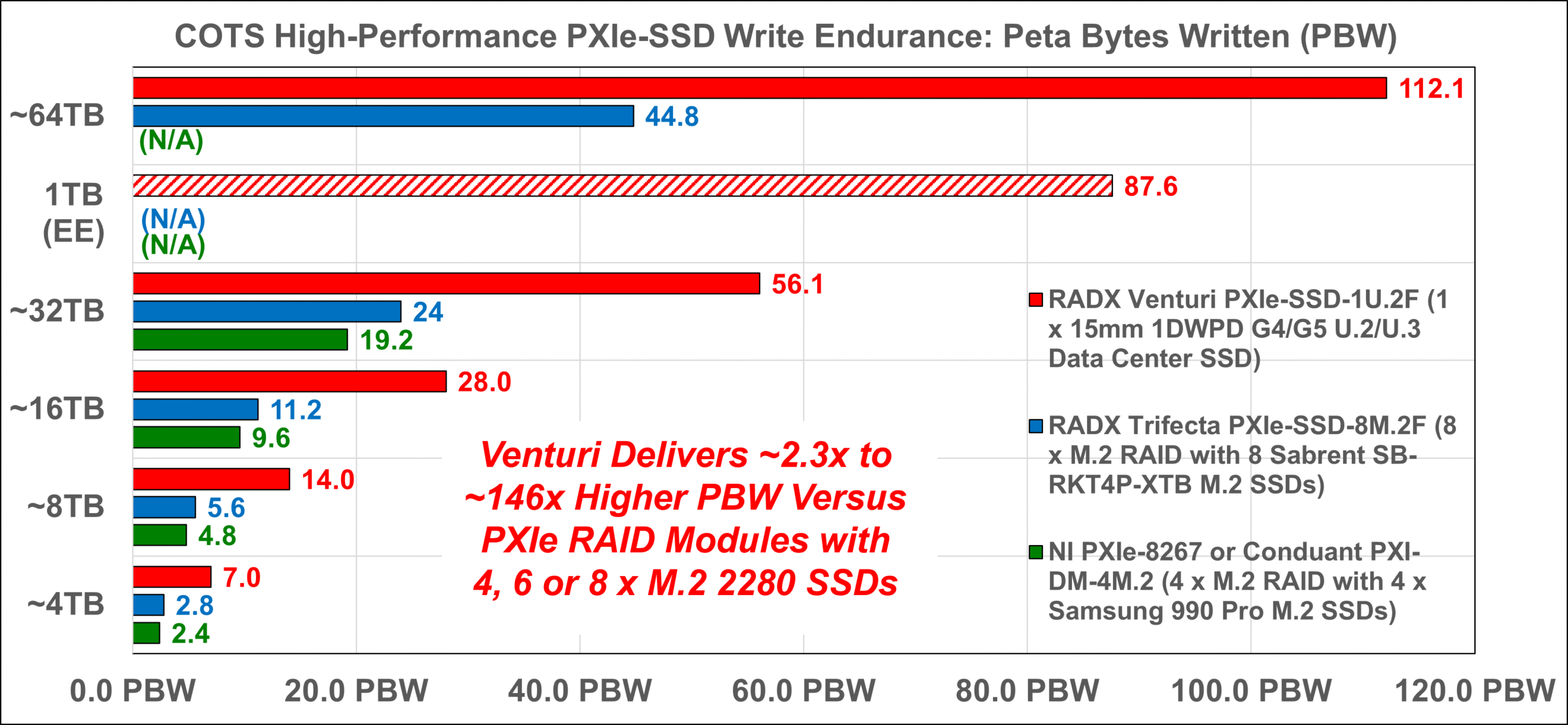

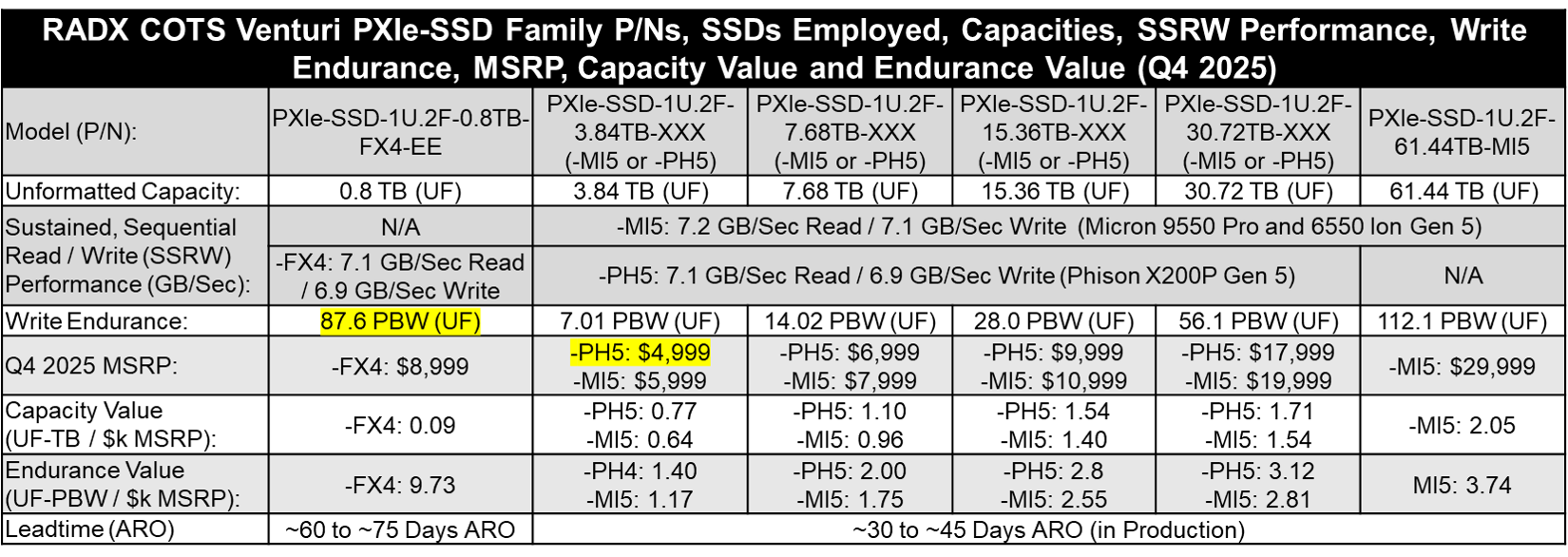

Industry-Leading Capacities and Write Endurance – Standard Venturi PXIe-SSD models include 7.68TB, 15.36TB, 30.72TB, and 61.44TB (unformatted) capacities, with ~24TB and other capacities available upon request. In addition, the Venturi Family includes a new, low-cost 3.84TB model ($5k MSRP) and an Extreme Endurance 800GB model (87.6 PBW) that’s optimized for continuous write and circular-buffer applications. With its Data Center SSDs, Venturi can support write endurance between 7 and 112 Petabytes Written (“PBW”), which is 2.3x to 146x higher than similar capacity M.2 RAID products with 4, 6 or 8 x M.2 SSDs. This enables Venturi to offer unrivalled support for wideband recording applications that require thousands of write cycles.
