PXIe-SSD Data Storage
Trifecta-SSD-RM
PXI Data Storage | PXIe Data Storage | PXI SSD | PXIe SSD
Trifecta-SSD-RM is a Family of COTS, Low-Cost, High-Performance, M.2 NVMe SSD Data Storage Modules for PXIe and 3U CPCIe Systems that features an M.2 NVMe SSD Data Cartridge that is easy-to-remove, replace, and upgrade.

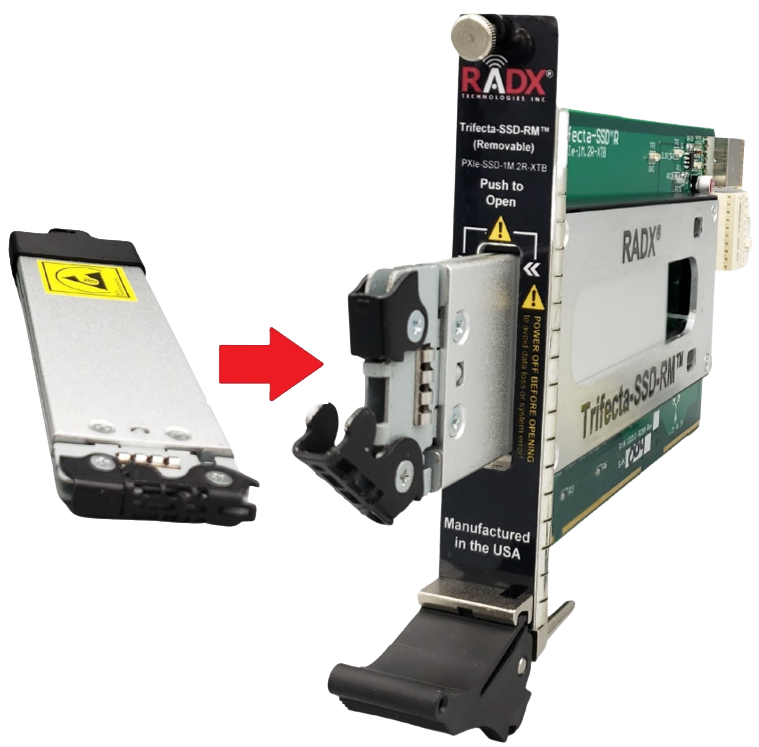

Easy-to-Remove, Replace & Upgrade Data Cartridge
When inserted into the Trifecta-SSD-RM Module, the M.2 NVMe SSD Data Cartridge connects to the PXIe Chassis PCIe backplane via a PCIe G3/G4 x4 interface. Trifecta-SSD-RM Data Cartridges are available in 1, 2, 4, and 8 TB capacities, providing between 2× and 16× the capacity of popular Embedded Controller (EC) SSDs.
High Performance vs. Embedded Controller Drives
When employed in a G3 PXIe x4 or x8 PXIe chassis, Trifecta-SSD-RM can support sequential read/write performance of up to ~3.5 GB/Sec, approximately 7× faster than Embedded Controller (EC) SATA3 drives for both sequential read and write performance, and ~3× faster for sequential write performance than popular Embedded Controller NVMe SSDs.
Software RAID Support for Greater Performance & Redundancy
Unlike Embedded Controller SSDs, Trifecta-SSD-RM supports software RAID via two or more modules, which can easily double or triple the capacity of the data storage subsystem and provide ~6 GB/Sec or faster sequential read/write performance via RAID-0, or enhanced fault-tolerance via RAID-1.
PXIe SSD Sequential Write Performance
CrystalDiskMark V8.0.4 x64, 8GB File, 1MB Block, Queue = 8, 1–8 Threads Averaged on PXIe-1092, June 2022
Ideal for Security-Sensitive & Field Applications
With its flexibility, wide range of capacities, and high performance, Trifecta-SSD-RM provides a cost-effective data storage upgrade for existing and/or new PXIe or 3U CPCI systems, especially for high-performance data acquisition applications where write performance is important, as well as for applications that require frequent security level changes and/or rapid backups.
Pricing & Availability
Trifecta-SSD-RM Module pricing starts at $1,999, which includes a 1 TB M.2 NVMe SSD Data Cartridge. Additional 1, 2, 4, or 8 TB Data Cartridges may be purchased separately. Delivery for small quantities is typically ~30 days ARO. Educational and VAR discounts are available. Trifecta-SSD-RM modules are long-life-cycle products designed and assembled in the USA and are BAA/TAA Compliant, available on GSA via GSAMart by TestMart.
Key Features
- Easy-to-remove, replace, and upgrade M.2 NVMe SSD Data Cartridge
- 1, 2, 4, and 8 TB cartridge capacities — 2× to 16× EC SSD capacity
- ~3.5 GB/Sec sequential read/write via PCIe G3/G4 x4 backplane interface
- ~7× faster than EC SATA3 drives; ~3× faster write than EC NVMe SSDs
- Software RAID-0 (performance) and RAID-1 (redundancy) support
- Ideal for security-sensitive, field, and rapid-backup applications
- Long-life-cycle, designed and assembled in the USA
- BAA/TAA compliant, available on GSA via GSAMart by TestMart
Long-Life-Cycle, USA-Manufactured, GSA Available
Trifecta-SSD-RM modules are long-life-cycle products designed and assembled in the USA and are available on GSA from TestMart. For more information, email [email protected] or call +1 (619) 677-1849 x1.
| Trifecta-SSD-RM Module P/Ns, Included Data Cartridge, and H126 MSRP Pricing | |||
| Each module includes the M.2 NVMe SSD Data Cartridge indicated | |||
| Module P/N | Included Data Cartridge P/N | Capacity | H126 MSRP* |
|---|---|---|---|
| PXIe-SSD-1M.2R-1TB-SS | DC-1M.2R-1TB-SS | 1 TB | $1,999 |
| PXIe-SSD-1M.2R-2TB-SS | DC-1M.2R-2TB-SS | 2 TB | $2,499 |
| PXIe-SSD-1M.2R-2TB-AD | DC-1M.2R-2TB-AD | 2 TB | $2,999 |
| PXIe-SSD-1M.2R-4TB-SB | DC-1M.2R-4TB-SB | 4 TB | $3,499 |
| PXIe-SSD-1M.2R-8TB-SB | DC-1M.2R-8TB-SB | 8 TB | $4,999 |
| Trifecta-SSD-RM Additional M.2 NVMe Data Cartridge P/Ns and H126 MSRP Pricing | ||
| Different capacity cartridges may be used in the same Trifecta-SSD-RM module | ||
| Data Cartridge P/N | Capacity | H126 MSRP* (US Shipping Incl.) |
|---|---|---|
| DC-1M.2R-1TB-SS | 1 TB | $689 |
| DC-1M.2R-2TB-SS | 2 TB | $1,189 |
| DC-1M.2R-2TB-AD | 2 TB | $1,689 |
| DC-1M.2R-4TB-SB | 4 TB | $2,189 |
| DC-1M.2R-8TB-SB | 8 TB | $3,689 |
*Pricing is FOB San Jose and excludes US import tariffs not in effect prior to RADX PO acceptance. BAA & TAA Compliant — available on GSA via GSAMart by TestMart.
Compliance & Standards
Ready to learn more?
Contact RADX sales or download the datasheet for full specifications.
